HAV SERIES S1 PRODUCT

"ALL PURPOSE TRACTOR"

The S1 Series is powered by Diesel engine and has 45, 50 and 55 Horse Power along with S1+ (Plus) models with 50 and 55 HP variants that has AC cabins and many more industry first features.

Our vision is to improve the life of farmers, and based on your feedback we have introduced a cabin even in the base variant of 50 S1, so that the heat and sun doesn't stop you.

Top Features
  • Future Ready Electric Tractor - The only Hybrid tractor technology in India without battery packs, which has the capability to run on multiple fuel options. Same tractors can be upgraded to a complete electric vehicle, once the infrastructure is in place.
  • Fully Automatic - AWED Technology (All Wheel Electric Drive)- The only tractor in India with all wheel electric drive with No Clutch, No Gear and simple three mode operations, Forward – Neutral – Reverse to ease out the human effort of our farmers
  • Eco Friendly - We promise to save upto 28% with S1 and upto 50% with S2 fuel in comparison to traditional tractors. It's a Self-energising technology, since the role of engine here is to only provide current to electric motors and other components.
  • All Wheel Independent Suspension along with height adjustment.

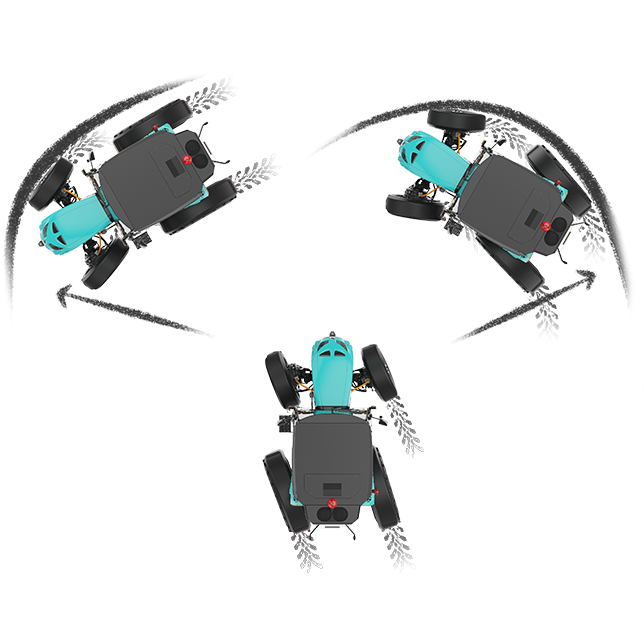

  • First in India - MCS (Max Cover Steering) with almost zero effort steering system with with lowest turning radius of 2.7m (Front-Steer, All-Steer, Crab-Steer).
  • Dynamic, innovative and modern design with interactive steering mounted HMI display. An interactive steering mounted HMI display to control the equipment and further reduce human labour.
  • Electric PTO along with Electric output to run field equipment like water pumps and even run house electricity upto 40KVA - 3Phase.
  • Several Safety and Comfort features for farmers to have hassle free field work.
  • Best in class 10 Years* Limited product warranty.

Below you will find the specification and price of the S1 Series-

    45 S1 50 S1 50 S1+ 55 S1 55 S1+
Engine
YANMAR ENGINE TIER3   4TNV84 4TNV88 4TNV88 4TNV88T 4TNV88T
MAX POWER (ISO) HP/KW 44/32 47.5/35 47.5/35 51/37.5 51/37.5
RATED SPEED RPM 3000 3000 3000 3000 3000
WATER COOLING
AIR FILTER   Dry Dry Dry Dry Dry
FUEL TANK CAPACITY L 50 60 60 + 40 60 60 + 40
DRIVE
SMART eDRIVE
(ACTIVE TORQUE & SLIP CONTROL)
HP/n 10/4 12/4 12/4 12/4 12/4
SELF ENERGISING UNIT (SEU) KVA
@RPM
35@3000 40@3000 40@3000 40@3000 40@3000
MAX COVER STEERING (MCS)
FRONT/ALL/CRAB

HEIGHT ADJUSTMENT
SUSPENSION SYSTEM (ALL WHEEL)
POWER TAKE - OFF
ELECTRIC PTO DRIVE
540 RPM (W/O GPTO)
540/750 RPM (W/O GPTO)
34.9MM PTO SHAFT (6 SPLINE)
NET PTO POWER HP/KW 40/29 42/31.4 42/31.4 46/33.8 46/33.8
BRAKES
ACTIVE E - BRAKES
OIB PARKING BRAKES (REAR)
HYDRAULIC POWER LIFT
DRAFT & POSITION CONTROL
LIFT - O - MATIC
LIFTING CAPACITY KG 1800 1800 2000 2200 2400
MAX. OPERATING PRESSURE BAR 190 190 190 190 190
TOTAL HYDRAULIC FLOW L/MIN 33 33 33 33 33
THREE POINT LINKAGE   CAT.1 CAT.1 CAT.1 CAT.2 CAT.2
REAR REMOTE VALVE   2 / 3 2 / 3 2 / 3 2 / 3 2 / 3
CAB AND DRIVER AREA
CAB SAFETY STRUCTURE
ROLL OVER PROTECTION (ROPS)
AIR CONDITIONING
HEATING / VENTILATION
REAR WIPER
ANALOG INSTRUMENT
TOUCH INSTRUMENT PANEL
SUSPENDED PLATFORM / CAB
SPRING SEAT
DIMENSIONS & WEIGHTS
FRONT TYRES   8X18 9.5X18 9.5X18 9.5X18 9.5X18
REAR TYRES   13.6X24 13.6X24 12.4X28 13.6X24 12.4X28
A - HEIGHT OVER ROPS (STD POSITION) MM 2485 - - - -
A - HEIGHT OVER CAB (STD POSITION) MM - 2485 2500 2485 2500
B - WHEELBASE MM 2000 2000 2000 2000 2000
C - TOTAL LENGTH W/O BALLAST MM 3280 3280 3280 3280 3280
D - GROUND CLEARANCE (STD POSITION) MM 400 400 400 400 400
E - MAX WIDTH MM 1830 1830 1830 1830 1830
F - HEIGHT TO STEERING WHEEL
(STD POSITION)
MM 1560 1560 1600 1560 1600
TOTAL WEIGHT W/O BALLAST KG 2000 2150 2250 2250 2400
PRICE (HAV SERIES S1)
  45 S1 50 S1 50 S1+ 55 S1 55 S1+
Price ₹ 8,49,000* ₹ 9,99,000* ₹ 11,99,000* ₹ 11,99,000* ₹ 13,99,000*

*T&C Apply
